📦 Multi Product
Overview
The Multi Product feature allows you to group individual products into themed "Product Boxes" that users can browse and purchase through a clean and modern widget interface. Each box can represent a collectible set, mystery bundle, or any other product group with its own image, price, and metadata.
The embedded multi-product widget provides a seamless purchase experience, enabling users to choose from multiple available packages and complete a transaction directly.
🧭 Navigation
You can access this feature in the admin panel via:
Sidebar > Goods Details > Multi Product
🧩 Feature Capabilities
| Capability | Description |
|---|---|
| Storefront branding | Customize title, subtitle, and logo on the widget |
| Box creation | Add custom product bundles with their own image and pricing |
| Product selection | Choose individual products to associate with each box |
| Embed checkout widget | Users see all available boxes and can purchase from a single interface |

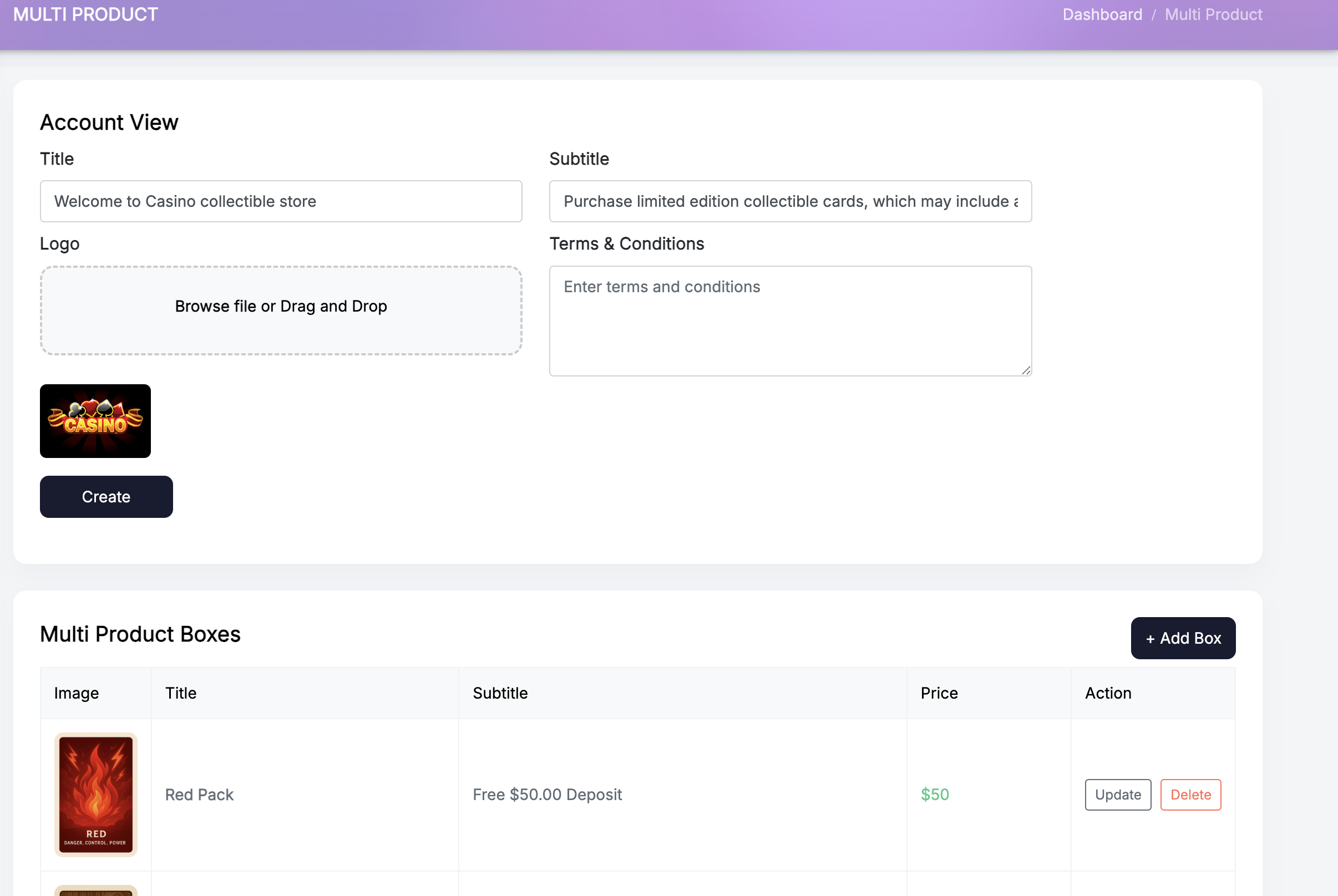

🔧 Admin Setup Flow
1. Storefront Branding
Under Account View, configure your public-facing display:
- Title: Store name (e.g.,
Welcome to xyzGames collectible store) - Subtitle: Description (e.g.,
Purchase limited edition collectible cards…) - Logo: Upload your brand or promotional logo
Click Create to save these settings.
2. Create Multi Product Box
Click the + Add Box button to launch the form.
Fields:
- Box Title: Name of the box (e.g.,
Red Pack) - Box Subtitle: Promotional message or bonus info (e.g.,
Free $50.00 Deposit) - Select Product: Choose the internal product(s) to associate
- Optional Box Image: Upload a custom design
Click Create to add the box.
3. Manage Boxes
Once created, boxes appear in a table with the following actions:
- ✅ Update: Modify existing box details
- ❌ Delete: Permanently remove a box
Each row shows the box’s:
- Image
- Title
- Subtitle
- Price
🌍 Widget Integration (Multi-Product Checkout Page)
🔗 Embed URL
To enable external users to buy from your storefront:
https://checkout.1buy.io/buy-sell/multiproduct?api_key=YOUR_API_KEY&multiproduct=true
Parameters:
api_key: Your unique store API keymultiproduct=true: Activates multi-product mode
| Parameter | Description | Example |
|---|---|---|
api_key | Your unique store API key | api_key=YOUR_API_KEY |
multiproduct | Activates multi-product mode | multiproduct=true |
full_name | User's full name (3 to 69 characters). | full_name=John Doe |
first_name | User's full name (3 to 69 characters). | first_name=John |
last_name | User's full name (3 to 69 characters). | last_name=Doe |
date_of_birth | User's date of birth in DD/MM/YYYY or MM/DD/YYYY format (for the USA). | date_of_birth=01/01/1990 |
email | User's email address. | email=johndoe@example.com |
phone | User's phone number. The + is optional for the country code. | phone=+1234567890 |
mode | The mode of operation: fast, web2, or web3. Default is fast. | mode=web3 |
custom_id | A custom order ID used to track the transaction. This can be your identifier to track your customers. | custom_id=order123 |
lang | Language for the widget interface: en for English, fr for French, ja for Japanese, es for Spanish, etc. | lang=en |
campaignID | A unique campaign ID for tracking purposes. | campaignID=campaign123 |
utm_source | A UTM parameter to track the traffic source for the transaction. | utm_source=google |
redirect_url | URL to redirect the user after a successful transaction. | redirect_url=https://yourwebsite.com/success |
fail_redirect_url | URL to redirect the user after a failed transaction. | fail_redirect_url=https://yourwebsite.com/fail |
redirect_page | How the redirect happens: new for opening in a new tab, self for redirecting in the current tab, parent for the current integrated page. Default: new. | redirect_page=new |
wait_time | Enables a delay before redirecting the user after the transaction. Accepts yes or no. If yes, it waits for the time specified in custom_time or defaults to 5 seconds. | wait_tume=yes |
custom_time | (Optional) Sets a custom delay duration (in seconds) before redirecting the user. Only applies if wait_time=yes. | custom_time=10 |
webhook_wait | Wait for the webhook response before redirecting: yes or no (default: no). | webhook_wait=yes |
state | Alpha-2 code of the USA state. | state=CA |
country | Alpha-2 code of the country. | country=US |
city | City of the user. | city=Los Angeles |
street | Street of the user. | street=new street |
postal_code | Postal code of the user. | country=12345 |
💻 iFrame Embed Example
<iframe
src="https://checkout.1buy.io/buy-sell/multiproduct?api_key=YOUR_API_KEY&multiproduct=true"
width="780px"
height="540px"
title="1buy.io"
frameborder="1"
/>
🧑💻 User Experience (Widget Flow)
Once embedded or accessed via direct link, users will see:
1. Landing Screen
- Store logo
- Title & subtitle
- CTA button: "Buy collectible card package"

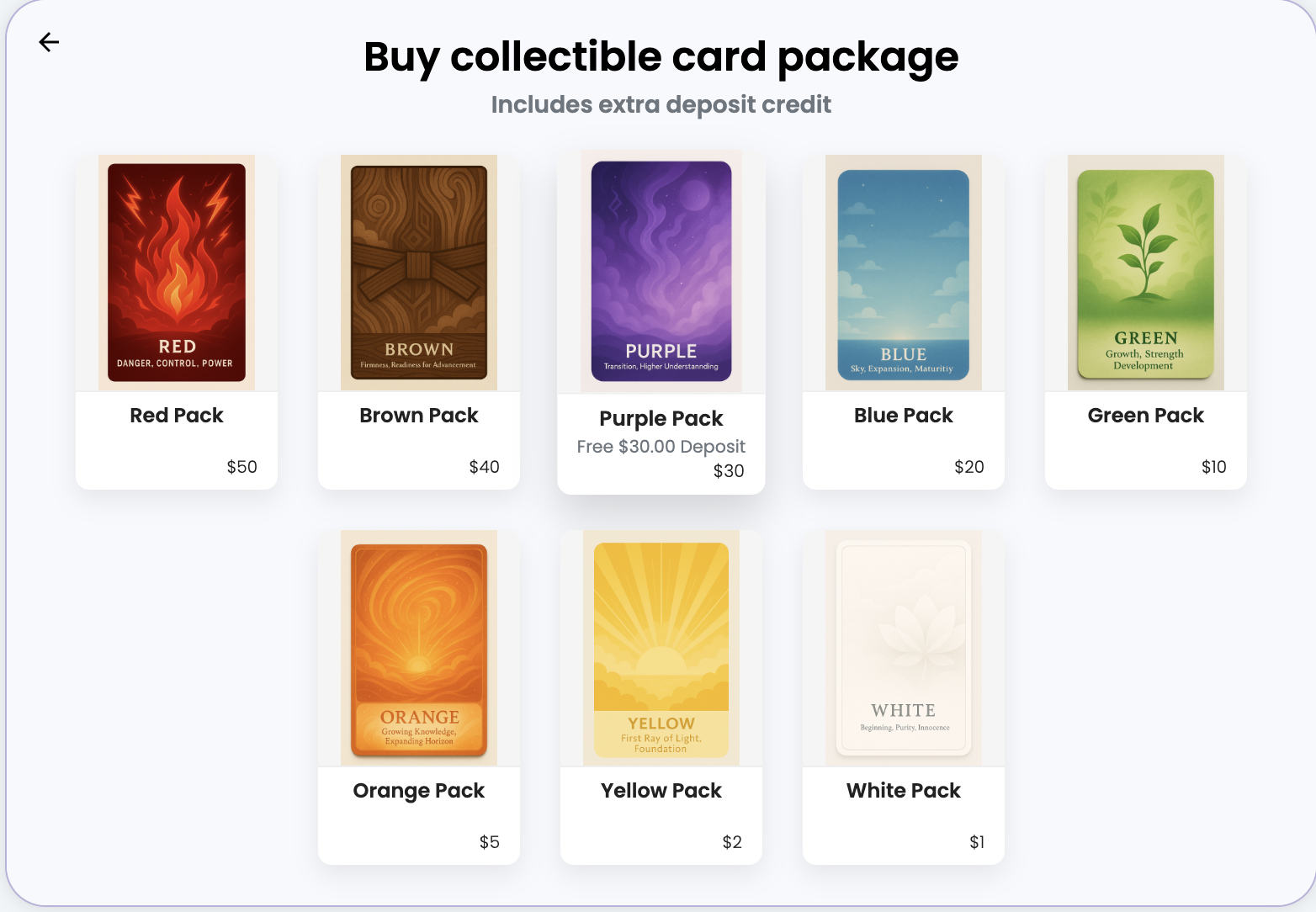

2. Product Selection Page
- Grid display of all multi product boxes
Each box shows:
- Box image
- Title (e.g.,
Red Pack) - Price (e.g.,
$50) - Subtitle (e.g.,
Free deposit credit)
Users can select a product and proceed to checkout securely.
🔑 Generate Hash for Multi Product Widget
To securely share your multi-product checkout page, you can generate a hash using the Hash Widget URL API. This allows you to create one-time or reusable checkout links that can be tracked and controlled.
Step 1: Prepare the URL Data
Build your multi-product widget URL as query parameters, for example: ?api_key=YOUR_API_KEY&multiproduct=true
You can add more parameters as needed (such as lang, custom_id, etc.).
Step 2: Make the API Request
Send a POST request to the Hash Widget URL API endpoint:
Endpoint
- Production:
https://api.1buy.io/api/business/product/hash_widget_url - Development:
https://api-dev.1buy.io/api/business/product/hash_widget_url
Request Example
{
"urlData": "?api_key=YOUR_API_KEY&multiproduct=true",
"is_one_time": true
}
Set is_one_time to true if you want the link to work only once (recommended for single-use invitations).
Sample curl command
curl -X POST 'https://api.1buy.io/api/business/product/hash_widget_url' \
-H 'api-key: YOUR_API_KEY' \
-H 'Content-Type: application/json' \
-d '{
"urlData": "?api_key=YOUR_API_KEY&multiproduct=true",
"is_one_time": true
}'
Step 3: Use the Returned Hash
<iframe
src="https://checkout.1buy.io/buy-sell/multiproduct?hash=HASH_VALUE"
width="780px"
height="540px"
title="1buy.io"
frameborder="1"
/>
